[Airflow] 에어플로우 DAG Dynamically Generate Serial Tasks (feat. 직렬화 처리)

배경설명

Airflow DAG task들을 생성할 때, 동일한 유형의 task들을 for문으로 처리하여 직렬화하고자 함.





단순 병렬화(Parallel) 처리라면, 아래와 같이 사용할 수 있음.

rfm_clustering_tasks = []

for rfm_module in py_execute_biz_modules["RFM"]:
    rfm_clustering_task =  EmrAddStepsOperator(
            task_id="rfm_clustering_{}_emr".format(rfm_module),
            job_flow_id=created_job_flow_id,
            aws_conn_id="aws_default",
            queue="main",
            steps=get_pyspark_execute_rfm(rfm_module),
            dag=dag,
        )
    rfm_clustering_tasks.append(rfm_clustering_task)

  execute_biz_starter >> rfm_clustering_tasks >> execute_biz_end

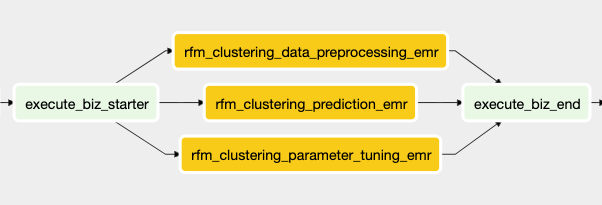

Task Dependency



문제상황

BUT, 원하는 형태는 execute_biz_starter ⇒ (data_preprocessing → parameter_tuning → prediction) ⇒ execute_biz_end 와 같은 중간 tasks들의 직렬화(Sequential) 처리임.





해결방안

1. for문을 사용한 Dynamic task generate 방법

rfm_clustering_tasks = []

for rfm_module in range(3):
    rfm_clustering_tasks.append(EmrAddStepsOperator(
            task_id="rfm_clustering_{}_emr".format(py_execute_biz_modules["RFM"][rfm_module]),
            job_flow_id=created_job_flow_id,
            aws_conn_id="aws_default",
            queue="main",
            steps=get_pyspark_execute_rfm(py_execute_biz_modules["RFM"][rfm_module]),
            dag=dag,
        )
    )

    if rfm_module == 0:
        execute_biz_starter >> rfm_clustering_tasks[rfm_module]
    else:
        rfm_clustering_tasks[rfm_module-1] >> rfm_clustering_tasks[rfm_module]

rfm_clustering_tasks[-1] >> execute_biz_end

DAG Tasks Workflow



2. 각 task를 갱신해주며 추가하기

previous_task = None

for rfm_module in range(3):
    rfm_clustering_task = EmrAddStepsOperator(
        task_id="rfm_clustering_{}_emr".format(py_execute_biz_modules["RFM"][rfm_module]),
            job_flow_id=created_job_flow_id,
            aws_conn_id="aws_default",
            queue="main",
            steps=get_pyspark_execute_rfm(py_execute_biz_modules["RFM"][rfm_module]),
            dag=dag,
        )

    if previous_task:
        previous_task >> rfm_clustering_task
    else:
        execute_biz_starter >> rfm_clustering_task

    previous_task = rfm_clustering_task

rfm_clustering_task >> execute_biz_end

DAG Tasks Workflow



*추가적인 개념으로, chain을 사용한 방법 = 병렬화 방법

from airflow.utils.helpers import chain


rfm_clustering_tasks = []

for rfm_module in range(3):
    rfm_clustering_tasks.append(EmrAddStepsOperator(
            task_id="rfm_clustering_{}_emr".format(py_execute_biz_modules["RFM"][rfm_module]),
            job_flow_id=created_job_flow_id,
            aws_conn_id="aws_default",
            queue="main",
            steps=get_pyspark_execute_rfm(py_execute_biz_modules["RFM"][rfm_module]),
            dag=dag,
        )
    )

chain(execute_biz_starter, rfm_clustering_tasks, execute_biz_end)

내장 모듈인 Chain을 활용한 병렬 Process 처리



ref.

https://stackoverflow.com/questions/64847484/airflow-dag-task-dependency-in-a-loop

https://stackoverflow.com/questions/39836524/how-to-create-dependency-between-dynamically-created-tasks-in-airflow





---
